• Developer: Vetcare Ltd.
  • Size: 0.17 ha
  • Density: 76 dph
  • No. of Dwellings: 13 (including new proposal for six apartments)
  • Dwelling Mix: 7 x 3-bed townhouses + 6 x 2-bed apartments
  • Parking/Home: 1
  • Other Uses: Veterinary Clinic, Office Units

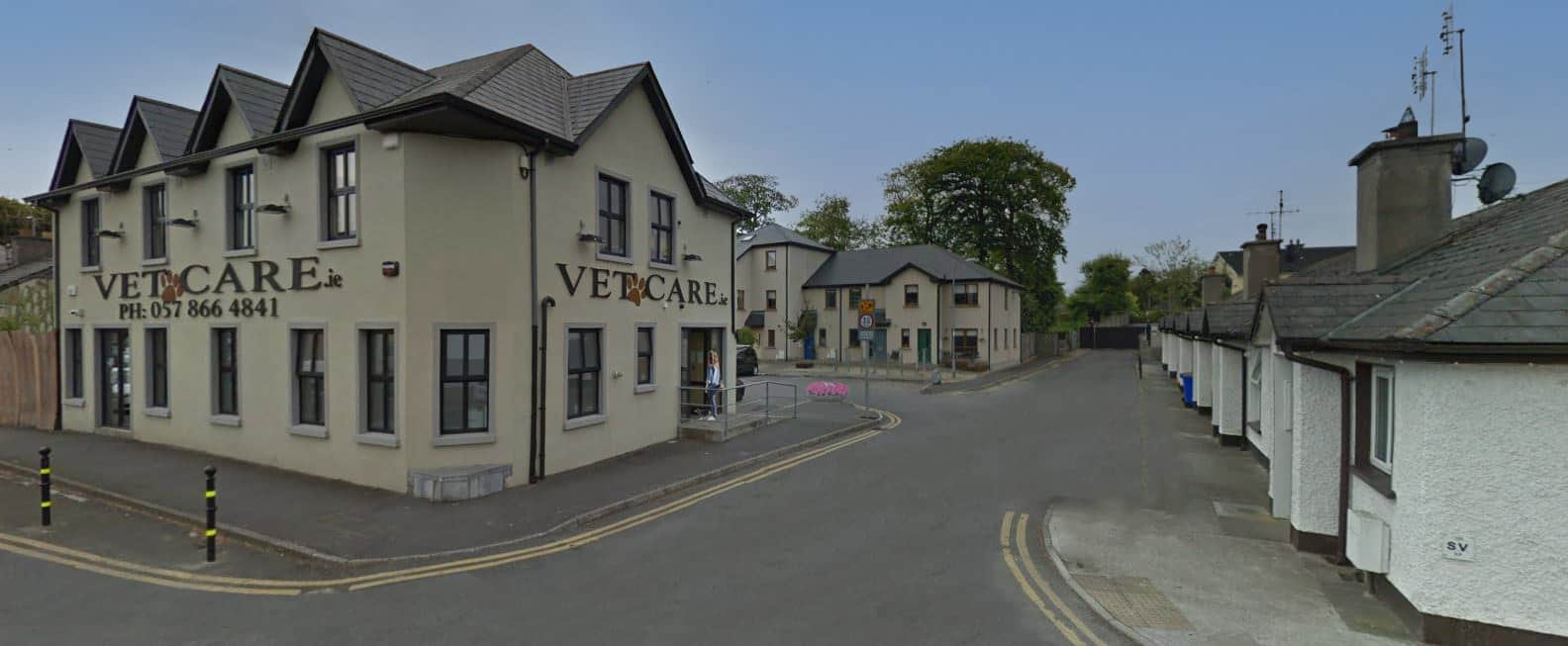

Well Road Court, Well Road, Portlaoise, Co. Laois

7 Townhouse Urban Brownfield Site Development

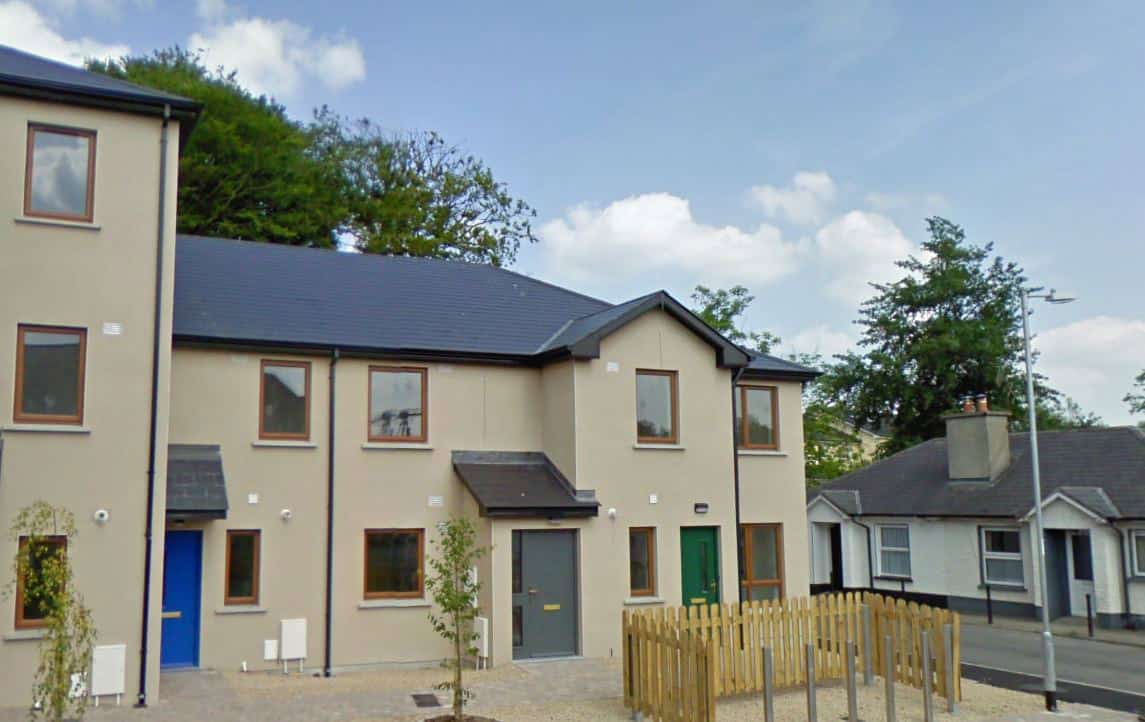

We were responsible for the design and project management of a small infill residential development on a brownfield site in Portlaoise, Co. Laois to the rear of the client’s veterinary practice.



The infill housing development comprises seven three-bedroom townhouses that have been accommodated on a site that is only 32m wide giving an average width of only 4.5 m. This has been achieved by a clever arrangement of interlocking L-shaped houses with the central unit stepping up to a third floor. The planning permission included a separate building with three two-bed apartments and two office units which are currently the subject of a revised design with residential use only.

The scheme represents a high density with the equivalent of 76 units per hectare.

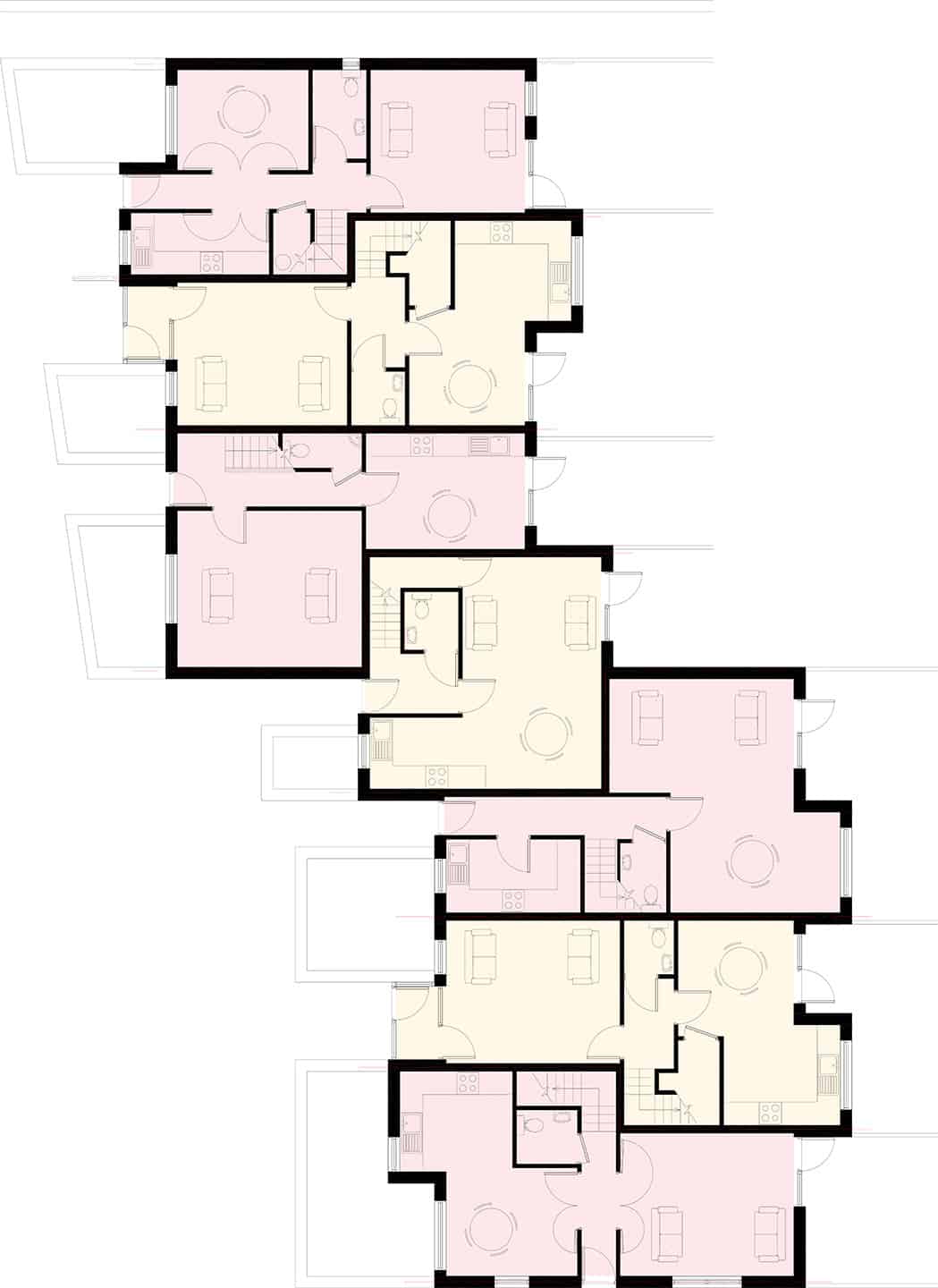

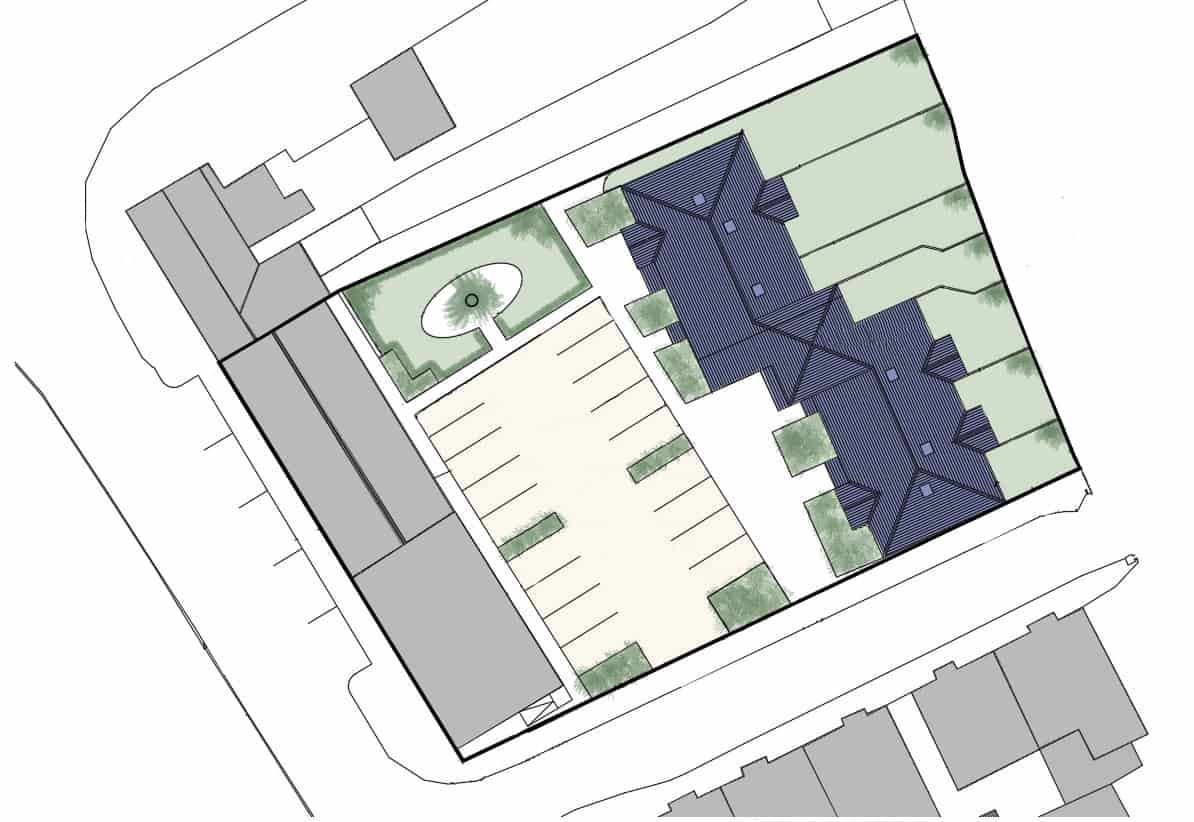

Plans & Drawings
